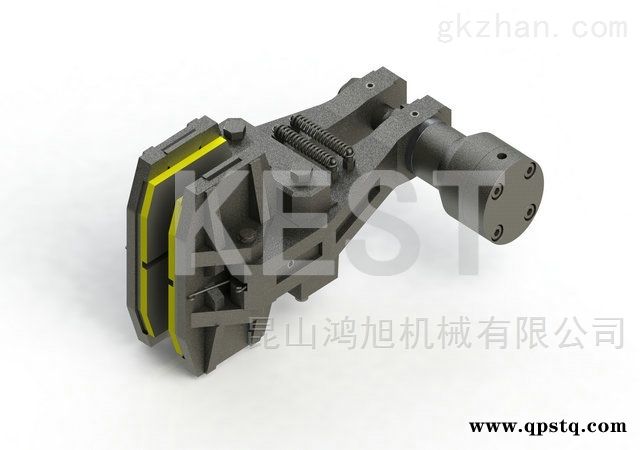

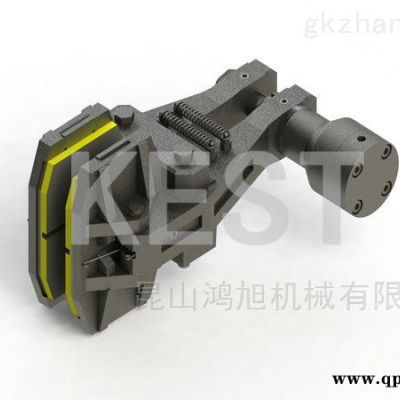

昆山鸿旭KB系列气动空气驱动制动器：

KB1气动驱动制动器

技术数据

制动力F：

KB1-1 556N 6bar

KB1-2 1516N 6bar

KB1-3 3888N 6bar

加速力矩

=F·[制动盘半径(m)-0.024]=Nm

zui大总磨损: 6 mm

新摩擦片厚度: 5 mm

持续滑动时的热容量Qc:1 kW

Technical data

Braking force F:

KB1-1 556 N at 6 bar

KB1-2 1516 N at 6 bar

KB1-3 3888 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.024) = Nm

Max total wear: 6 mm

Thickness of new lining: 5 mm

Continuousthermal capacity Qc: 1 kW

KB2气动驱动制动器

厚度为25.4mm的制动盘同样适用, 产品代号不同

Available also for disc thickness 25,4 mm.

技术数据

制动力F：

KB2-1 1730 N 6bar

KB2-2 4100 N 6bar

KB2-3 8000 N 6bar

KB2-4 13700N 6bar

动态力矩

=F·[制动盘半径(m)- 0.03) = Nm

zui大总磨损：16 mm

新摩擦片厚度：16 mm

持续滑动时的热容量

Qc: 1.7 kW

双倍制动垫型持续滑动时的热容量

Qc: 2.7 kW

Technical data

Braking force F:

KB2-1 1730 N at 6 bar

KB2-2 4100 N at 6 bar

KB2-3 8000 N at 6 bar

KB2-4 13700 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.03) = Nm

Max total wear: 16 mm

Thickness of new lining: 16 mm

Continuous thermal capacity

Qc: 1.7 kW

Continuous thermal capacity

for double pad version Qc: 2.7 kW

KB3气动驱动制动器

技术数据

制动力F：

KB3-1 670 N 6bar

KB3-2 1800 N 6bar

KB3-3 3550 N 6bar

加速力矩

=F·[制动盘半径(m)-0.032]=Nm

zui大总磨损: 14 mm

新摩擦片厚度: 16 mm

持续滑动时的热容量Qc: 1.7 kW

双倍制动垫型持续滑动时的热容量

Qc: 2.7 kW

Technical data

Braking force F:

KB3-1 670 N at 6 bar

KB3-2 1800 N at 6 bar

KB3-1 3550 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.032) = Nm

Max total wear: 14 mm

Thickness of new lining: 16 mm

Continuous thermal capacity

Qc: 1.7 kW

Continuous thermal capacity

for double pad version Qc: 2.7 kW

KB4气动驱动制动器

技术数据

制动力F：

KB4-1 1600 N 6bar

KB4-2 3800 N 6bar

KB4-3 7500 N 6bar

KB4-4 12700 N 6bar

动态力矩

=F·[制动盘半径(m)-0.033]=Nm

zui大总磨损：12 mm

新摩擦片厚度：11 mm

持续滑动时的热容量Qc: 3.4 kW

Technical data

Braking force F:

KB4-1 1600 N at 6 bar

KB4-2 3800 N at 6 bar

KB4-3 7500 N at 6 bar

KB4-4 12700 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.033) = Nm

Max total wear: 12 mm

Thickness of new lining: 11 mm

Continuous thermal capacity Qc: 3.4 kW

KB5气动驱动制动器

厚度为25.4-30-40mm的制动盘同样适用。

Available also for disc thickness 25.4-30-40mm.

技术数据

制动力F:

KB5-1 6bar时制动力为1600N

KB5-2 6bar时制动力为3800N

KB5-3 6bar时制动力为7500N

KB5-4 6bar时制动力为12700N

加速力矩

=F [制动盘半径（m）-0.033]=Nm

一对摩擦片zui大总磨损：12mm

新单片摩擦片厚度：11mm

持续散热功率

Qc：3.4KW

Technical data

Braking force F:

KB5-1 1600 N at 6 bar

KB5-2 3800 N at 6 bar

KB5-3 7500 N at 6 bar

KB5-4 12700 N at 6 bar

Dynamic torque

= F.(disc radius in m-0.033)=Nm

Max total wear: 12 mm

Thickness of new lining: 11 mm

Continuous thermal capacity

Qc: 3.4kW

KB6气动驱动制动器

技术数据

制动力F:

KB6-1 6bar时制动力为3610N

KB6-2 6bar时制动力为7200N

KB6-3 6bar时制动力为12500N

KB6-4 6bar时制动力为19000N

加速力矩

=F.[制动盘半径（m）-0.062]=Nm

一对摩擦片zui大总磨损：10mm

新单片摩擦片厚度：8mm

持续散热功率

Qc：14KW

Technical data

Braking force F:

KB6-1 3610 N at 6 bar

KB6-2 7200 N at 6 bar

KB6-3 12500 N at 6 bar

KB6-4 19000 N at 6 bar

Dynamic torque

= F.(disc radius in m-0.062)=Nm

Max total wear: 10 mm

Thickness of new lining: 8 mm

Continuous thermal capacity

Qc: 14kW

KB7气动驱动制动器

技术数据

制动力F：

KB7-1 20180 N 6bar

KB7-2 36600 N 6bar

动态力矩

=F·[制动盘半径(m)-0.065]=Nm

zui大总磨损: 12 mm

新摩擦片厚度: 13 mm

持续滑动时的热容量Qc: 20 kW

Technical data

Braking force F:

KB7-1 20180 N at 6 bar

KB7-2 36600 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.065) = Nm

Max total wear: 12 mm

Thickness of new lining: 13 mm

Continuous thermal capacity Qc: 20 kW

KB8气动驱动制动器

技术数据

制动力F：

KB8-1 20180 N 6bar

KB8-2 36600 N 6bar

动态力矩

=F·[制动盘半径(m)-0.065]=Nm

zui大总磨损: 12 mm

新摩擦片厚度: 13 mm

持续滑动时的热容量Qc: 20 kW

Technical data

Braking force F:

KB8-1 20180 N at 6 bar

KB8-2 36600 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.065) = Nm

Max total wear: 12 mm

Thickness of new lining: 13 mm

Continuous thermal capacity Qc: 20 kW
