品牌：HALDER，ELESA,GANTER
类别：弹性销
标准类型：德标
起订：1件
供应：999件
| 类别 | 弹性销 |
|---|---|
| 标准类型 | 德标 |
| 标准编号 | 见参数 |
| 公称直径 | 见参数（mm） |
| 表面处理 | 氧化发黑 |
| 材料等级 | 碳钢 125-245HV30 |
| 应用范围 | 机械工业用紧固件 |
| 加工定制 | 否 |
| 样品或现货 | 现货 |
| 公称长度 | 见参数 |
| 品牌 | NORELEM |
| 型号 | 见参数 |

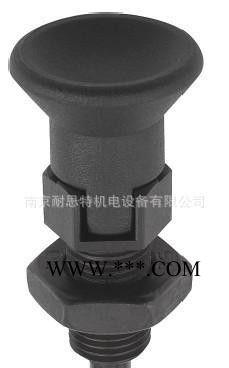

Description
Material:
- Steel
version, locking pin hardened:
quality
class 5.8
-
Stainless steel version, locking pin hardened:
threaded
sleeve 1.4305
locking
pin 1.4034
-
Stainless steel version, locking pin not hardened:
threaded
sleeve 1.4305
locking pin
1.4305
Mushroom
knob in anthracite grey thermoplastic
Surface finish:
- Steel
version, locking pin hardened:
black
oxide finish, locking pin ground
-
Stainless steel version, locking pin hardened:
natural
finish, locking pin ground
-
Stainless steel version, locking pin not hardened:
natural
finish, locking pin ground
Description
Material:
- Steel
version, locking pin hardened:
quality
class 5.8
-
Stainless steel version, locking pin hardened:
threaded
sleeve 1.4305
locking
pin 1.4034
-
Stainless steel version, locking pin not hardened:
threaded
sleeve 1.4305
locking
pin 1.4305
Mushroom
knob in anthracite grey thermoplastic
Surface finish:
- Steel
version, locking pin hardened:
black
oxide finish, locking pin ground
-
Stainless steel version, locking pin hardened:
natural
finish, locking pin ground
-
Stainless steel version, locking pin not hardened:
natural
finish, locking pin ground
?
?
| 03089-4903 | 03089-04903 | 03089-14903 | D | 3 | M6x0,75 | 14 | 31,5 | 12 | 5 | 10 | 3,5 | 8 | 10 | 0,8 | 4,5 | 10 | |
| 03089-4004 | 03089-04004 | 03089-14004 | D | 4 | M8x1 | 18 | 38,5 | 15 | 6 | 13 | 4 | 10 | 13 | 1 | 6 | 12 | |
| 03089-4105 | 03089-04105 | 03089-14105 | D | 5 | M10x1 | 21 | 43,5 | 17 | 7 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 | |
| 03089-4206 | 03089-04206 | 03089-14206 | D | 6 | M12x1,5 | 25 | 51,7 | 20 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 | |
| 03089-4308 | 03089-04308 | 03089-14308 | D | 8 | M16x1,5 | 33 | 68 | 26 | 10 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 | |
| 03089-4410 | 03089-04410 | 03089-14410 | D | 10 | M20x1,5 | 33 | 74 | 28 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 | |
| 03089-4412 | 03089-04412 | 03089-14412 | D | 12 | M20x1,5 | 33 | 78 | 28 | 14 | 25 | 12 | 22 | 30 | 2,8 | 15 | 39 | |
| 03089-4516 | 03089-04516 | 03089-14516 | D | 16 | M24x2 | 40 | 96 | 32 | 18 | 28 | 16 | 27 | 36 | 3,2 | 20 | 46 |
