Smalley螺旋弹性挡圈

    SMALLEY波簧（Wave Spring）与冲压性挡圈为了**直径尺寸的需要而采用卷绕制造工艺。它们具有统一的横断面（抗干涉无耳装配）并且没有毛刺。Smalley螺旋弹性挡圈符合军工和航天业的规格要求并且被应用于世界范围内成千上万的机械产品中。

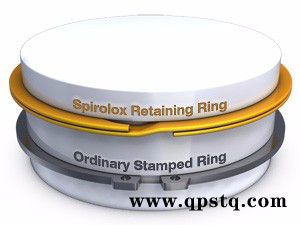

普通卡式挡圈因其结构上存在耳部,造成与内零件接触而发生干涉.Smalley生产的由不锈钢制成的弹性挡圈,其截面一致无耳部,故安装后不会与配合零件之间发生干涉,而且弹性挡圈的成本还低于卡式挡圈.

青岛品高供应链管理有限公司
Qingdao Pinnacle Supply Chain Manage Co.,Ltd
Tel: +86-532-84673257   Cell: +86-18653281608

E-mail: Pinnacle@189.cn

   采用弹性挡圈可省去轴台设计,减少轴的尺寸,节省材料和加工时间.

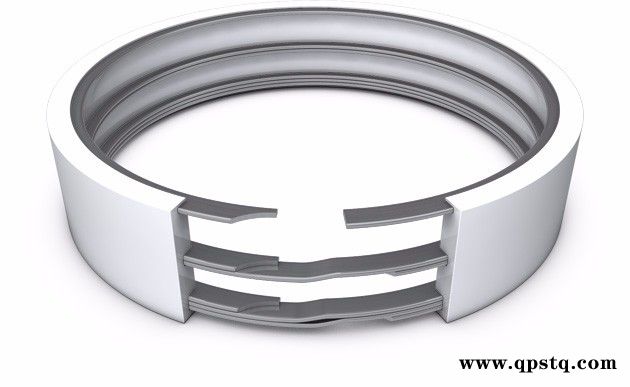

    Smalley波形挡圈是一种具有波浪形状的可拆卸挡圈.一个波形挡圈可顶替一个挡圈和一个波簧,它可预先向滚珠轴承施加压力,同时也象普通Smalley挡圈一样装配在槽中.

    双圈偏移型外挡圈用来替代轴台.它用来固定喷嘴零件,使之易于装配.该挡圈的宽度设计成零干涉,其外径比螺纹根部的直径小.

    在压力表中,波形挡圈安装在浅槽内,对表面玻璃仅产生非常小的压力.这样挡圈既可使表面玻璃固定,又不会将玻璃压碎.

    挡圈在同步带轮两侧形成侧壁.该方法淘汰了压入式侧壁.为方便更换皮带,一侧的挡圈采用易拆卸型.

    波形挡圈易于满足现场维修要求.如液压缸密封圈需要维修时,该挡圈可用螺丝刀迅速拆卸,并轻松重新安装.

    弹性挡圈的用途还有很多,如要了解可联系我司.

另外,波形弹簧的用途也很广,如可用于可调皮带轮,轴承预压,电气连接,液压密封,离合器,球阀,流体阀联轴器等.

中

专业工业制造领域供应链管理方案；无模具费，无**小起定量

Smalley弹性挡圈特性：

1.无耳设计与配件不会相互干扰；

2.smalley挡圈环晶卷绕成型，与传统冲压工艺相比机械性能更加稳定；

3.360°平面，尺寸稳定；

4.五千多种标准挡圈（直径6.5~406mm）；

5.特殊订制非标挡圈无需开模费用（直径5~2300mm）；

6.易于安装与拆卸。

青岛品高供应链管理有限公司Tel: 0532-84673257/18653281608

E-mail: Pinnacle@189.cn

//www.pinnacles.icoc.me/

 Helical Disc Spring德国进口螺旋碟形弹簧

德国生产线圈拉伸碟形弹簧

由两条完全相同的线圈弹簧相互绞旋而成，但每条线圈都被压成碟形弹簧片状。

优点：

1.和内外导杆摩擦损坏几乎为零

2.拆装容易，不会有排列组合错误发生

3.一条碟簧破裂，负荷仍不受影响

4.多条绞合而成，能将扭力有效转化为扩张力

5.能承受高速震动冲击，瞬间高负荷、高频负荷

6.表面热塑化处理，寿命长，自我中心导引

线圈碟簧目前除机床业外，没有固定规格可供选择。依据实际需求，量身定做。

Compact disc springs with two characteristics are a specialty, in whichtwo spring characteristics are combined into one spring.

The essential advantages at a glance:

· Single component design, no breakup into individualdiscs

· Simple and cost-saving assembly and maintenance

· Extremely high spring load at a minimum outer diameterand a low hysteresis

· No erroneous diagram results caused by incorrectlayering or grease influence

· High durability due to the use of strip steel withuninterrupted grain structure

· High operational safety due to stable spring loads evenin case of breakage (no loss of deflection

· Spring characteristics are designed according tocustomers requirements

· No friction at mandrel or sleeve due to the fact thatthe stiffness of the spring allows to dispense with any guidance

· High resistance to negative environmental conditionsand extreme temperature variations

· Economical productivity for allapplications, also in small quantities

青岛品高供应链管理有限公司 零件事业部Tel: 0532-84673257/18653281608

摒弃传统国际贸易公司经营模式，打造工业制造领域专业化供应链管理解决方案！

Withour patented helical disk spring, we can offer our customers a proven andtested machine component,which in many cases replaces the common multi-layerdisc spring.assembly. The helical disc spring consists of two identical flatwire compression springs, screwed into one another to achieve a cross-sectionsimilar to that of disc springs. The uninterrupted grain structure of the rawmaterial leads to an increased durability and reduces the risk of breakage ofthe coiled spring.

Advantages of the  Helical Coil Design

?Lowerunclamp force required

?Custom-madeto fi t a specifi c application

?Reducedload on bearing

?No“stacking” of belleville springs — a one-piece spring allows for much fasterassembly

?Lowfriction loss

?Mostspring force is maintained when springs break

青岛品高供应链管理有限公司 零件事业部Tel: 0532-84673257 /18653281608

摒弃传统国际贸易公司经营模式，打造工业制造领域专业化供应链管理解决方案！

Our patented helical disk spring is a tried andtested component which can often replace the familiar multi-layer disk springassembly. It is made up of two identical helical compression springs screwedtogether, both made of steel strip with a cross-section similar to that of disksprings. The uninterrupted grain flow of the basic material increases servicelife and reduces the risk of fracture of the coiled helical disk spring.
    Generally the function of anyalternately layered column of disk springs is replaceable by a helical diskspring. The increase of force is proportional to the operating stroke, becausebending stress only arises in the spring band steel.
    The helical disk spring can even becoiled with winding distance, so it starts by operating with thecharacteristics of a helical pressure spring, but when it comes into contactwith the windings it operates with the high spring force of a multi-layer diskspring.

青岛品高供应链管理有限公司 零件事业部Tel: 0532-84673257 /18653281608
