| 缸数 | 2 |
|---|---|
| 功率 | 5.5KW |
| 类型 | 活塞式压缩机 |
| 型式 | 固定式压缩机 |
| 用途 | 制冷压缩机 |
| 重量 | 1kg |
| 品牌 | Sanyo/三洋 |
| 型号 | C-L55M8E C-L55MM9D C-L55MM3C C-LN55M8A C-LN55M9A |
| 加工定制 | 否 |
| 外形尺寸（长x宽x高） | 0*0*0 |
厂家直销 不含运费 不含税 仿制三洋连杆活塞

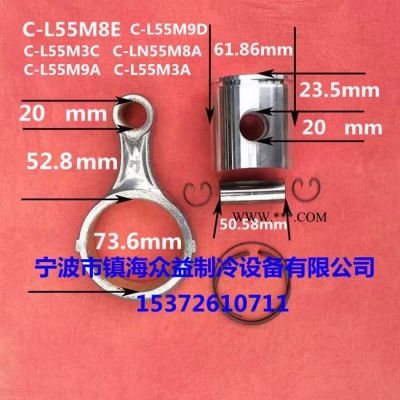

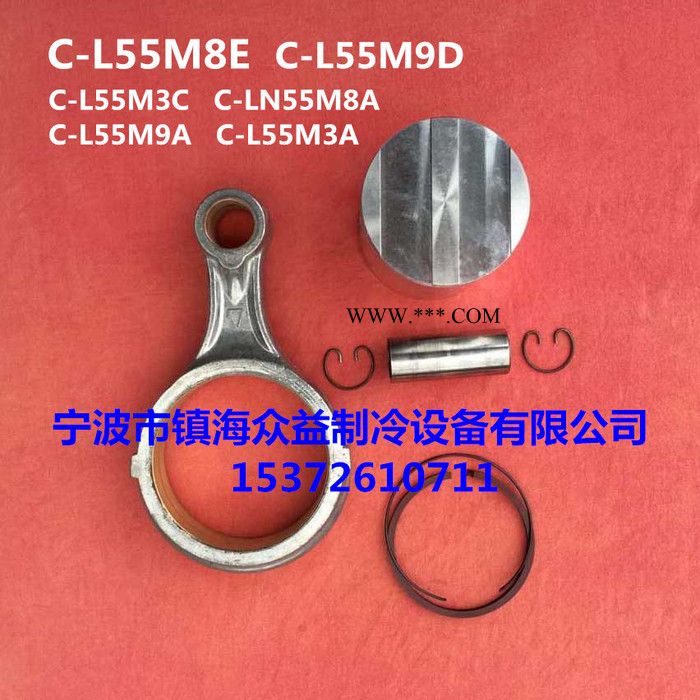

7.5P Sanyo/三洋C-L55M8E C-L55MM9D C-L55MM3C C-LN55M8A C-LN55M9A C-LN55M3A 连杆活塞
厂家直销 不含运费 不含税 原装进口 质量与外观跟新机相仿

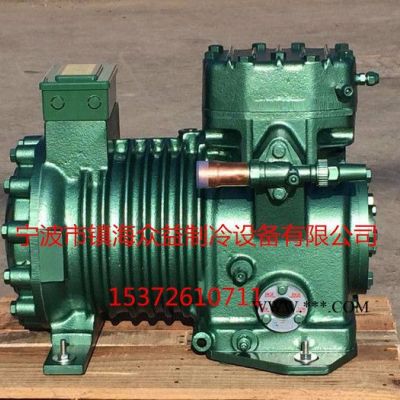

名称：SANYO/三洋
型号：C-L55M8E
功率：5.5KW
电源：380V/440V-50HZ/60HZ
气缸直径（mm):62
行程（mm):48.4
气缸数量：2
排气量：25.41m3/h
底脚安装尺寸：296mm*280mm
外形尺寸（mm):长宽高
吸气管内径（mm)：28
排气管内径（mm）：19
重量（kg):100
油充注量（升）：3.0
制冷剂：R12 R22 R502
| 型号 | C-L15M8H | 22M8F | 28M8G | 37M8L | 45M8D | 55M8E | 75M81 | 90M82 | 105M83 | 150M82 |
| 气缸数 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| 缸径mm | 40 | 48 | 55 | 55 | 62 | 62 | 62 | 62 | 62 | 62 |
| 行程mm | 29 | 29 | 33 | 44 | 44 | 48.4 | 37.6 | 43.3 | 50 | 70 |
| 排气量m3/h | 6.33 | 9.14 | 13.64 | 18.18 | 23.11 | 25.41 | 39.5 | 45.41 | 52.55 | 73.52 |
| 冷冻能力KW | 2.44 | 3.56 | 5.35 | 7.5 | 10.00 | 10.99 | 15.7 | 17.40 | 20.30 | 30.30 |
| 额定功率KW | 1.2 | 1.75 | 2.52 | 3.4 | 4.65 | 4.94 | 6.8 | 8.3 | 9.7 | 13.8 |
| 电流A | 2.5 | 3.5 | 5.1 | 6.8 | 9.8 | 9.9 | 12.5 | 15.6 | 19.6 | 26.2 |
| 始动电流A | 22 | 27 | 42.5 | 52.5 | 73.5 | 86 | 95 | 99 | 126 | 175 |
| 油注入L | 0.9 | 0.9 | 2.8 | 2.8 | 3.0 | 3.0 | 5.2 | 5.2 | 5.2 | 5.2 |
| 吸接管mm | 12.7 | 15.9 | 19.1 | 22.2 | 28.6 | 28.6 | 28.6 | 28.6 | 34.9 | 41.5 |
| 排接管mm | 12.7 | 15.9 | 15.9 | 15.9 | 19.1 | 19.1 | 22.2 | 22.2 | 22.2 | 28.6 |
| 压缩机 | 项目 | 冷凝温度C | 蒸发温度C | |||||||
| | | -40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | |
| C-L45M8D 80533068 4.5KW 6HP | 制冷量Q KW | 30 | 1.90 | 3.50 | 5.18 | 6.93 | 8.76 | 10.67 | 12.65 | 14.71 |
| 35 | 1.70 | 3.37 | 5.07 | 6.79 | 8.55 | 10.34 | 12.17 | 14.02 | ||
| 40.5 | 1.50 | 3.23 | 4.95 | 6.65 | 8.33 | 10.00 | 11.65 | 13.29 | ||
| 45 | 1.35 | 3.13 | 4.85 | 6.53 | 8.15 | 9.73 | 11.25 | 12.72 | ||
| 50 | 1.21 | 3.03 | 4.75 | 6.40 | 7.96 | 9.43 | 10.82 | 12.12 | ||
| 输入功率P KW | 30 | 1.78 | 2.46 | 3.06 | 3.57 | 3.99 | 4.33 | 4.58 | 4075 | |
| 35 | 1.88 | 2.59 | 3.20 | 3.72 | 4.15 | 4.48 | 4.71 | 4.85 | ||
| 40.5 | 1.99 | 2.73 | 3.38 | 3.91 | 4.33 | 4.65 | 4.86 | 4.96 | ||
| 45 | 2.08 | 2.86 | 3.52 | 4.06 | 4.49 | 4.80 | 4.99 | 5.06 | ||
| 50 | 2.19 | 3.01 | 3.69 | 4.24 | 4.67 | 4.96 | 5.13 | 5.17 | ||
| 输入电流 A | 30 | 7.02 | 7.42 | 7.86 | 8.34 | 8.86 | 9.42 | 10.03 | 10.67 | |
| 35 | 7.17 | 7.57 | 8.00 | 8.49 | 9.20 | 9.60 | 10.22 | 10.90 | ||
| 40.5 | 7.35 | 7.73 | 8.17 | 8.66 | 9.20 | 9.80 | 10.45 | 11.15 | ||
| 45 | 7.49 | 7.87 | 8.31 | 8.81 | 9.36 | 9.97 | 10.63 | 11.36 | ||
| 50 | 7.66 | 8.03 | 8.47 | 8.97 | 9.53 | 10.16 | 10.84 | 11.59 | ||
| C-L55M8E 80504668 5.5KW 7.5HP | 制冷量Q KW | 30 | 2.32 | 3.86 | 5.60 | 7.54 | 9.66 | 11.98 | 14.49 | 17.20 |
| 35 | 2.10 | 3.65 | 5.37 | 7.24 | 9.29 | 11.50 | 13.88 | 16.42 | ||
| 40.5 | 1.88 | 3.43 | 5.11 | 6.94 | 8.89 | 10.99 | 13.22 | 15.59 | ||
| 45 | 1.72 | 3.26 | 4.92 | 6.69 | 8.58 | 10.59 | 12.71 | 14.95 | ||
| 50 | 1.56 | 3.09 | 4.71 | 6.43 | 8.25 | 10.16 | 12.16 | 14.26 | ||
| 输入功率P KW | 30 | 2.10 | 2.77 | 3.35 | 3.86 | 4.28 | 4.62 | 4.89 | 5.07 | |
| 35 | 2.20 | 2.87 | 3.46 | 3.97 | 4.41 | 4.77 | 5.06 | 5.27 | ||
| 40.5 | 2.32 | 2.99 | 3.58 | 4.10 | 4.55 | 4.94 | 5.26 | 5.50 | ||
| 45 | 2.43 | 3.09 | 3.68 | 4.21 | 4.68 | 5.08 | 5.42 | 5.70 | ||
| 50 | 2.55 | 3.20 | 3.80 | 4.33 | 4.82 | 5.24 | 5.16 | 5.93 | ||
| 输入电流 A | 30 | 7.66 | 7.90 | 8.20 | 8.54 | 8.93 | 9.38 | 9.87 | 10.42 | |
| 35 | 7.81 | 8.07 | 8.38 | 8.74 | 9.16 | 9.62 | 10.14 | 10.71 | ||
| 40.5 | 7.99 | 8.26 | 8.59 | 8.97 | 9.41 | 9.90 | 10.45 | 11.05 | ||
| 45 | 8.13 | 8.42 | 8.76 | 9.16 | 9.62 | 10.13 | 10.70 | 11.33 | ||
| 50 | 8.29 | 8.59 | 8.96 | 9.38 | 9.86 | 10.40 | 11.00 | 11.66 | ||
