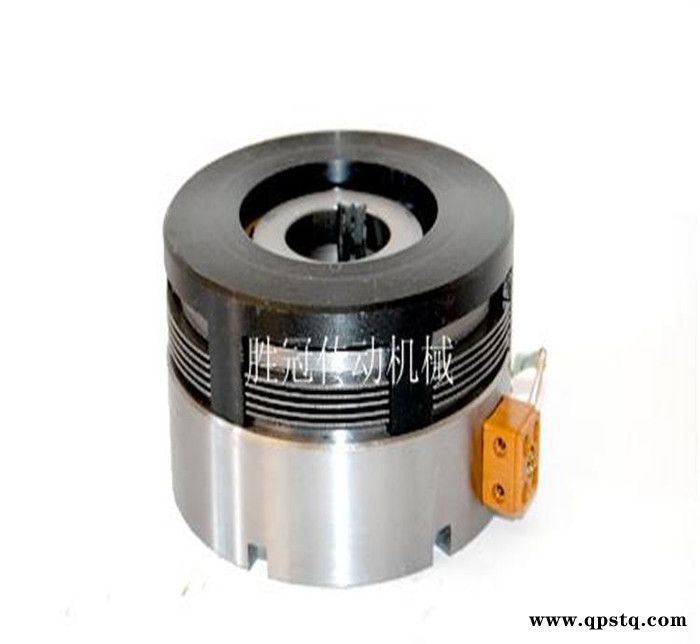

| 规格 | DLM3-25/A |
|---|---|
| 扭矩 | 250 |
| 适用范围 | 机床 |
| 重量 | 8.17 |
| 转速 | 2200 |
| 品牌 | 冠海 |
| 型号 | DLM3-25/A |
·湿式润滑、无磨损、寿命长。
·整体结构、安装方便。
·无滑环电刷磨损、适用较高转速。
·无需调整使用便捷。
性能参数：Main Technical Data
规格 Size | 额定动力矩 Rated Dynamic Torque N.m | 额定静力矩 Rated Static Torque N.m | 空载力矩 Drag Torque (≤)N.m | 接通时间 Engagement Time (≤)S | 断开时间 Disengagement Time (≤)S | 额定电压 Rated Voltage D.C V | 线圈功率 Coil Consumption (20℃)W | **高转数 Max Revolutions r.p.m | 重量 Weight Kg | 供油流量 Oil Flow Rates L/min |
1.2/1.2A | 12 | 20 | 0.39 | 0.28 | 0.09 | 24 | 18 | 3500 | 1.56 | 0.20 |
2.5/2.5A | 25 | 40 | 0.40 | 0.3 | 0.09 | 24 | 21 | 3500 | 2.3 | 0.25 |
5/5A | 50 | 80 | 0.90 | 0.32 | 0.1 | 24 | 32 | 3000 | 3.38 | 0.40 |
10/10A | 100 | 160 | 1.80 | 0.35 | 0.14 | 24 | 38 | 3000 | 5 | 0.65 |
16/16A | 160 | 250 | 2.40 | 0.37 | 0.14 | 24 | 50 | 2500 | 6.2 | 0.65 |
25/25A | 250 | 400 | 3.50 | 0.4 | 0.18 | 24 | 61 | 2200 | 8.18 | 1.00 |
40/40A | 400 | 630 | 5.60 | 0.42 | 0.2 | 24 | 72 | 2000 | 14.3 | 1.00 |
63/63A | 630 | 1000 | 9.00 | 0.45 | 0.25 | 24 | 83 | 1800 | 20.9 | 1.20 |
外形与安装尺寸
| 规格 | 径向尺寸 | 轴向尺寸 | |||||||||||
D1 | D2 | D | d | b | φ | e | h | L | L1 | L2 | S | T | |
1.2 | 86 | 50 | 20 | 17 | 6 | 20 | 6 | 21.8 | 51 | 44.5 | 5.5 | 3.5 | 6 |
2.5 | 96 | 56 | 25 | 22 | 6 | 25 | 8 | 27.3 | 57 | 51.5 | 5.5 | 3.5 | 6 |
5 | 113 | 65 | 30 | 26 | 8 | 30 | 8 | 32.3 | 63 | 56 | 5 | 3.5 | 8 |
10 | 133 | 75 | 40 | 35 | 10 | 40 | 12 | 42.3 | 68 | 59 | 6.5 | 5.5 | 8 |
16 | 145 | 85 | 45 | 40 | 12 | 45 | 14 | 47.4 | 70 | 61.5 | 6.5 | 5.5 | 10 |
25 | 166 | 110 | 50 | 45 | 12 | 50 | 14 | 52.4 | 78.5 | 68 | 7.5 | 5.5 | 10 |
40 | 192 | 110 | 60 | 54 | 14 | 60 | 16 | 62.2 | 91 | 79.5 | 8 | 6 | 10 |
63 | 212 | 125 | 70 | 62 | 16 | 70 | 20 | 74.3 | 109 | 96.5 | 9.5 | 7 | 10 |
