首页 > 供应产品 > 台湾利迅DBG蝶式离合器蝶式刹车器空压制动器空压蝶式刹车器

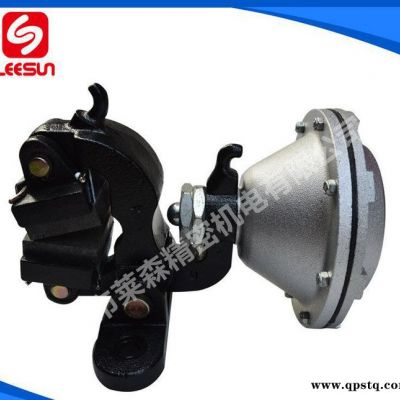

台湾利迅DBG蝶式离合器蝶式刹车器空压制动器空压蝶式刹车器
产品: 浏览次数:1087台湾利迅DBG蝶式离合器蝶式刹车器空压制动器空压蝶式刹车器
品牌: LEESUN
类型: 气动制动器
尺寸: 见详图
单价: 890.00元/台
最小起订量: 10 台
供货总量: 1000 台
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2022-03-22 20:44

详细信息
类型 气动制动器
尺寸 见详图
用途 制动,张力控制
是否提供加工定制
品牌 LEESUN
型号 DBG-104



原产台湾,耐水,耐尘,耐高温,频繁使用耐久性高,性能稳定。

利用空气压力动作,无电气火花,具有防暴性,安全可靠。

制动力可任意调整,制动矩范围广。

散热效果良好,摩擦片耐摩且两片式,更换容易。

适用于工作机械、建设机械、轧钢杨械、伸线杨、绞线机、卷取杨、门型起重机及天车、造纸杨械、船舶重型车、切边、放料、定位、张力控制等场合。

此为立式,有两种规格气磅头----4#、5#。

 基本参数

MODEL

DBG104

DBG105

最大压力

7 kg/㎝2

7 kg/㎝2

压缩比

0.74

0.74

圆盘厚度

10mm

10mm

圆盘直径mm

200以上

200以上

重量()

5kg

6kg

空压与扭矩的关系



外形尺寸



SIZE

X

Y

ØZ

DBG 104

18

225

141

DBG 105

36

238

177



温馨提示:

以上产品信息仅供参考,详情请旺旺咨询!

点击这里
