| 材质 | 轴承钢 |
|---|---|
| 用途 | 工业 |
| 是否标准件 | 标准件 |
| 样品或现货 | 现货 |
| 是否进口 | 非进口 |
| 品牌 | 天牛 |

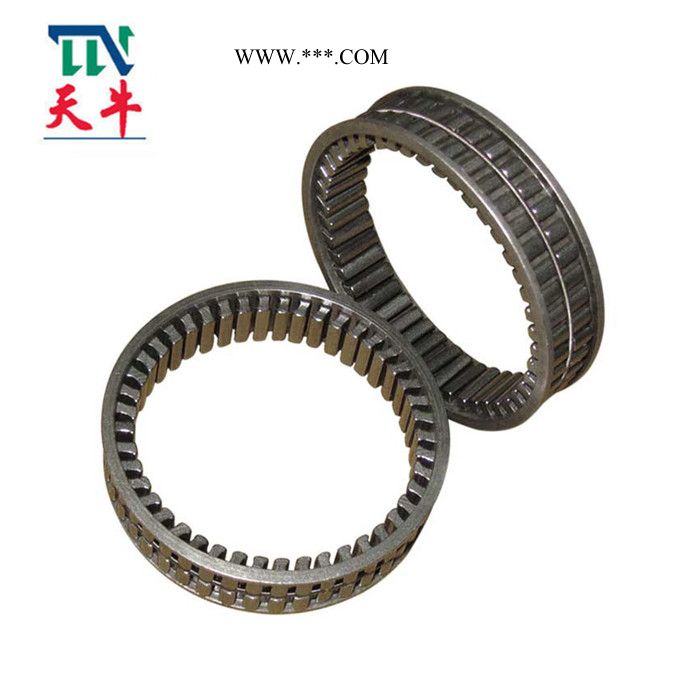

| 型号 | HF RSCI RSBI DC |
| 加工定制 | 是 |
| 轴承材质 | 轴承钢 |
| Type | Drag torque | Size(mm) | Number of clips | |||||
| Tkn(NM) | a | c | sprag space | e | d | b | ||
| DC2222G | 50 | 22.225 | 38.885 | 8.33 | 10 | 50 | 17 |
|
| DC2776 | 95 | 27.762 | 44.422 | 8.33 | 13.5 | 58 | 21 |
|
| DC3034 | 99 | 30.34 | 47 | 8.33 | 13.5 | 62 | 23 |
|
| DC3175(3C) | 127 | 31.75 | 48.41 | 8.33 | 13.5 | 63 | 24 | 3 |
| DC3809A | 220 | 38.092 | 54.752 | 8.33 | 16 | 71 | 29 |
|
| DC4127(3C) | 179 | 41.275 | 57.935 | 8.33 | 13.5 | 75 | 32 | 3 |
| DC4445A | 290 | 44.45 | 61.11 | 8.33 | 16 | 79 | 34 |
|
| DC4972(4C) | 245 | 49.721 | 66.381 | 8.33 | 13.5 | 86 | 38 | 4 |
| DC5476A | 420 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 |
|
| DC5476A(4C) | 420 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | 4 |
| DC5476B(4C) | 615 | 54.765 | 71.425 | 8.33 | 21 | 92 | 42 | 4 |
| DC5476C(4C) | 792 | 54.765 | 71.425 | 8.33 | 25.4 | 92 | 42 | 4 |
| DC5776A | 483 | 57.76 | 74.42 | 8.33 | 16 | 98 | 44 |
|
| DC6334B | 645 | 63.34 | 80 | 8.33 | 21 | 104 | 50 |
|
| DC7221(5C) | 540 | 72.217 | 88.877 | 8.33 | 13.5 | 115 | 56 | 5 |
| DC7221B | 1023 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 |
|
| DC7221B(5C) | 1023 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | 5 |
| DC7969C(5C) | 1630 | 79.698 | 96.358 | 8.33 | 25.4 | 124 | 61 | 5 |
| DC8334C | 1645 | 83.34 | 100 | 8.33 | 25.4 | 132 | 65 |
|
| DC8729A | 1000 | 87.29 | 103.96 | 8.33 | 16 | 134 | 67 |
|
| DC10323A(3C) * | 1290 | 103.231 ** | 119.891 | 8.33 | 16 | 155 | 80 | 3 |
| DC12334C * | 3840 | 123.34 ** | 140 | 8.33 | 25.4 | 184 | 96 |
|
| DC12388C(11C) | 3900 | 123.881 | 142.88 | 9.5 | 25.4 | 196 | 96 | 11 |
